K280LX
Low Voltage 3-Phase High Output
Series: K •
Frame: 280LX •
2 Poles / 2.985 RPM •
160.00kW / 220.00hp •
Mounting: B3 •
Cast Iron Motor
| Manufacturer | Valiadis SA |
| Family | K Series |
| Family / Frame | K / 280LX |
| Rated / Power | 160.00 kW / 220.00 hp |
| Speed | 2.985 RPM |
| Mounting | B3 |
| Voltage / Connection | 400 /Δ | 690 /Y |
| Frequency | 50 Hz |
| Full load current 1 | 0,00 A |
| Full load current 2 | 268,40 A / 154,96 A |
| Temperature rise | 80.0 |
| Comment | 3XPTCs |
| Feature | Cast Iron Motor |
| Rotor current | 0.00 |
| Moment of inertia | 1.928 |
| Torque | 512,80 |
| Locked rotor torque / full load torque | 2,00 |
| Pull out torque / full load torque | 3,10 |
| Locked rotor current / full load current | 8,20 |
| Bearing DE | 6314C3 |
| Bearing NDE | 6314C3 |
| Vibration | 0.00 |
| Warranty | 12-18 months |
| Weight | 1045.0 |
| Code | K_2_000220.00_280LX_B3_3 |
| 100% | 75% | 50% | 25% | ATHENS | THESSALONIKI | |||
|---|---|---|---|---|---|---|---|---|
| Power factor | 0.9 | In stock
as of Jul 4, 2025 |
2 | |||||
| Efficiency | 95.6 | 95.4 | 94.3 |
PDF

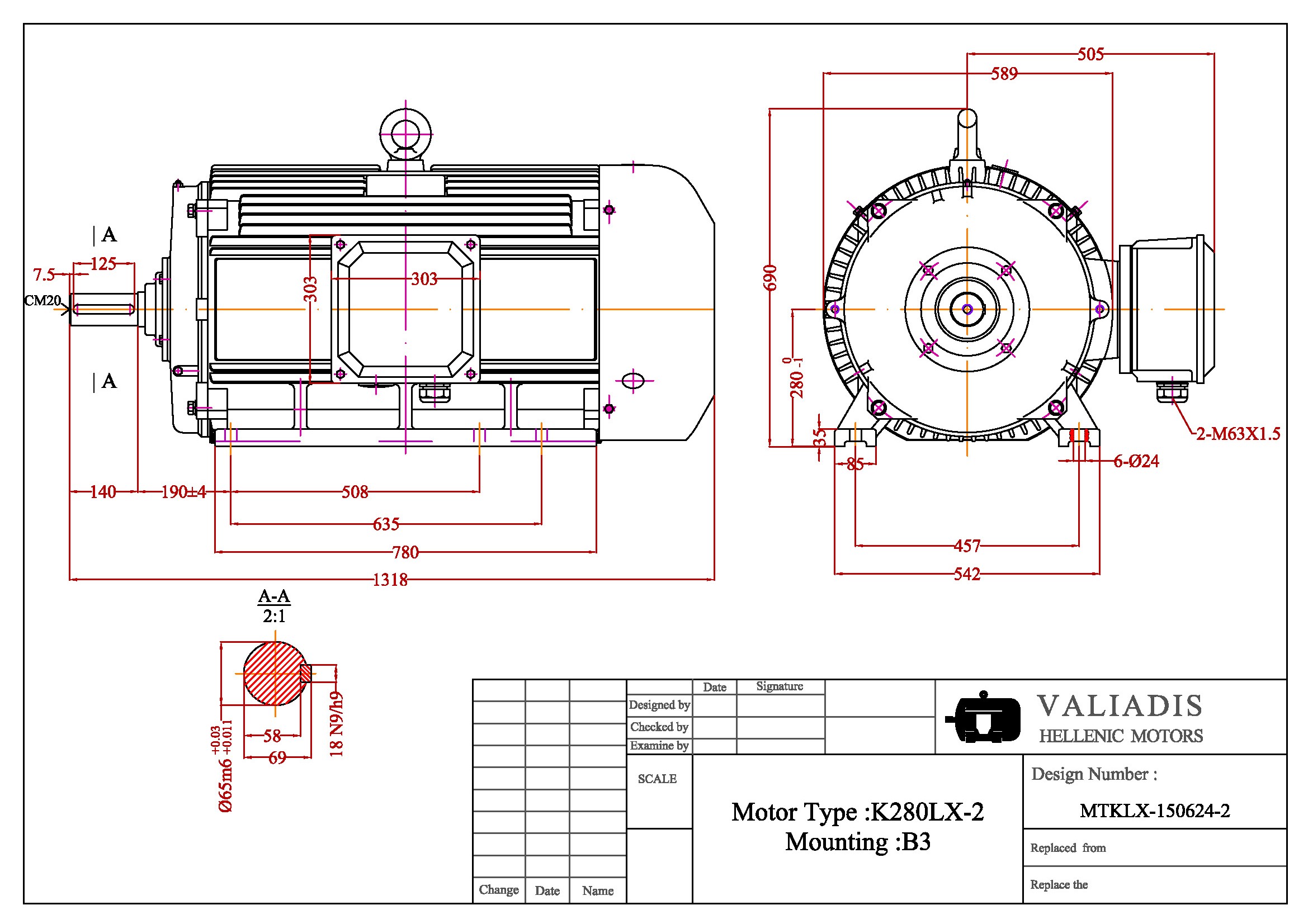

Drawing
Drawing
CAD
Drawing
Drawing
With
Brake
Brake
Forced
Cooling Kit
Cooling Kit
EFFICIENCY
REPORTS
REPORTS
